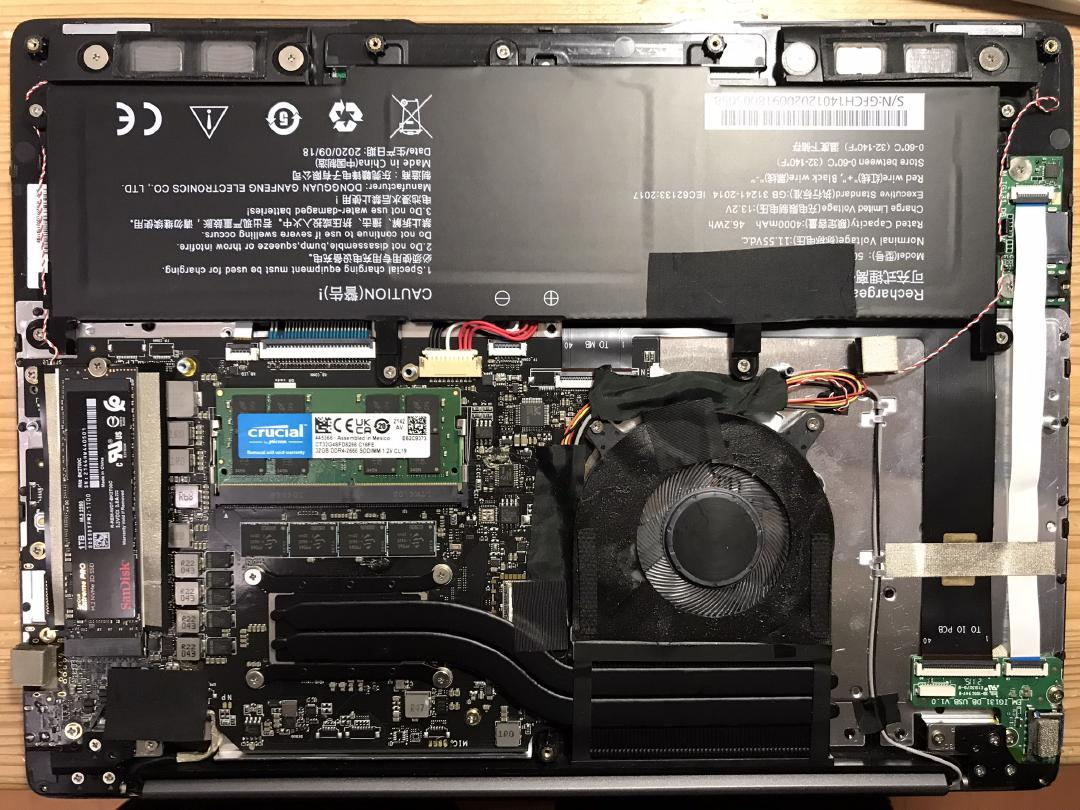

さっそく背面を開けてみる
- Memory:8GB+8GB(増設スロット)
- SSDの増設スロットは無し
-
メモリは40 GBに
real memory = 42948624384 (40959 MB) avail memory = 41569411072 (39643 MB)
-
NVMeを認識しちゃんとディスクドライブ(/dev/nvd0)が生えた
nvd0: <SanDisk Extreme Pro 1TB> NVMe namespace nvd0: 953869MB (1953525168 512 byte sectors)
-
ネットワーク
iwm0: <Intel(R) Dual Band Wireless AC 7265>
-
音声
pcm0: <Realtek ALC897 (Internal Analog)> (play/rec) default pcm1: <Realtek ALC897 (Front Analog Headphones)> (play) pcm2: <Intel Kaby Lake (HDMI/DP 8ch)> (play)
-
カメラ
ugen0.2: <Sonix Technology Co., Ltd. USB 2.0 Camera> at usbus0
---<<BOOT>>---
Copyright (c) 1992-2022 The FreeBSD Project.
Copyright (c) 1979, 1980, 1983, 1986, 1988, 1989, 1991, 1992, 1993, 1994
The Regents of the University of California. All rights reserved.
FreeBSD is a registered trademark of The FreeBSD Foundation.
FreeBSD 14.0-CURRENT #0 n253275-f01c863337f7: Mon Feb 21 14:28:11 JST 2022
root@tbedfc:/usr/obj/usr/src/amd64.amd64/sys/GENERIC amd64
FreeBSD clang version 13.0.0 (git@github.com:llvm/llvm-project.git llvmorg-13.0.0-0-gd7b669b3a303)
WARNING: WITNESS option enabled, expect reduced performance.
VT(efifb): resolution 800x600
CPU: Intel(R) Core(TM) i5-8259U CPU @ 2.30GHz (2300.00-MHz K8-class CPU)
Origin="GenuineIntel" Id=0x806ea Family=0x6 Model=0x8e Stepping=10
Features=0xbfebfbff<FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CLFLUSH,DTS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE>
Features2=0x7ffafbbf<SSE3,PCLMULQDQ,DTES64,MON,DS_CPL,VMX,EST,TM2,SSSE3,SDBG,FMA,CX16,xTPR,PDCM,PCID,SSE4.1,SSE4.2,x2APIC,MOVBE,POPCNT,TSCDLT,AESNI,XSAVE,OSXSAVE,AVX,F16C,RDRAND>
AMD Features=0x2c100800<SYSCALL,NX,Page1GB,RDTSCP,LM>
AMD Features2=0x121<LAHF,ABM,Prefetch>
Structured Extended Features=0x29c67af<FSGSBASE,TSCADJ,SGX,BMI1,AVX2,SMEP,BMI2,ERMS,INVPCID,NFPUSG,MPX,RDSEED,ADX,SMAP,CLFLUSHOPT,PROCTRACE>
Structured Extended Features3=0x9c002400<MD_CLEAR,TSXFA,IBPB,STIBP,L1DFL,SSBD>
XSAVE Features=0xf<XSAVEOPT,XSAVEC,XINUSE,XSAVES>
VT-x: PAT,HLT,MTF,PAUSE,EPT,UG,VPID
TSC: P-state invariant, performance statistics
real memory = 42948624384 (40959 MB)
avail memory = 41569411072 (39643 MB)
Event timer "LAPIC" quality 600
ACPI APIC Table: <ALASKA A M I >
FreeBSD/SMP: Multiprocessor System Detected: 8 CPUs
FreeBSD/SMP: 1 package(s) x 4 core(s) x 2 hardware threads
random: registering fast source Intel Secure Key RNG
random: fast provider: "Intel Secure Key RNG"
random: unblocking device.
ioapic0 <Version 2.0> irqs 0-119
Launching APs: 1 5 2 6 7 4 3
random: entropy device external interface
kbd1 at kbdmux0
efirtc0: <EFI Realtime Clock>
efirtc0: registered as a time-of-day clock, resolution 1.000000s
smbios0: <System Management BIOS> at iomem 0x8c9b5000-0x8c9b501e
smbios0: Version: 3.2, BCD Revision: 3.2
aesni0: <AES-CBC,AES-CCM,AES-GCM,AES-ICM,AES-XTS>
acpi0: <ALASKA A M I >
acpi0: Power Button (fixed)
ACPI Error: No handler for Region [ECF2] (0xfffff800021f5d80) [EmbeddedControl] (20210930/evregion-292)
ACPI Error: Region EmbeddedControl (ID=3) has no handler (20210930/exfldio-428)
ACPI Error: Aborting method \134_SB.PCI0.LPCB.H_EC.LID0._STA due to previous error (AE_NOT_EXIST) (20210930/psparse-689)
cpu0: <ACPI CPU> on acpi0
hpet0: <High Precision Event Timer> iomem 0xfed00000-0xfed003ff on acpi0
Timecounter "HPET" frequency 24000000 Hz quality 950
Event timer "HPET" frequency 24000000 Hz quality 550
atrtc0: <AT realtime clock> port 0x70-0x77 irq 8 on acpi0
atrtc0: Warning: Couldn't map I/O.
atrtc0: registered as a time-of-day clock, resolution 1.000000s
Event timer "RTC" frequency 32768 Hz quality 0
attimer0: <AT timer> port 0x40-0x43,0x50-0x53 irq 0 on acpi0
Timecounter "i8254" frequency 1193182 Hz quality 0
Event timer "i8254" frequency 1193182 Hz quality 100
Timecounter "ACPI-fast" frequency 3579545 Hz quality 900
acpi_timer0: <24-bit timer at 3.579545MHz> port 0x1808-0x180b on acpi0
acpi_ec0: <Embedded Controller: GPE 0x50> port 0x62,0x66 on acpi0
pcib0: <ACPI Host-PCI bridge> port 0xcf8-0xcff on acpi0
pci0: <ACPI PCI bus> on pcib0
vgapci0: <VGA-compatible display> port 0x3000-0x303f mem 0xa0000000-0xa0ffffff,0x90000000-0x9fffffff at device 2.0 on pci0
vgapci0: Boot video device
xhci0: <XHCI (generic) USB 3.0 controller> mem 0xa1300000-0xa130ffff at device 20.0 on pci0
xhci0: 32 bytes context size, 64-bit DMA
usbus0 on xhci0
usbus0: 5.0Gbps Super Speed USB v3.0
pci0: <memory, RAM> at device 20.2 (no driver attached)
sdhci_pci0: <Generic SD HCI> mem 0xa132c000-0xa132cfff at device 20.5 on pci0
sdhci_pci0: 1 slot(s) allocated
pci0: <serial bus> at device 21.0 (no driver attached)
pci0: <serial bus> at device 21.1 (no driver attached)
pci0: <serial bus> at device 21.2 (no driver attached)
pci0: <simple comms> at device 22.0 (no driver attached)
ahci0: <AHCI SATA controller> port 0x3090-0x3097,0x3080-0x3083,0x3060-0x307f mem 0xa131c000-0xa131dfff,0xa1327000-0xa13270ff,0xa1326000-0xa13267ff at device 23.0 on pci0
ahci0: AHCI v1.31 with 2 6Gbps ports, Port Multiplier not supported
ahcich0: <AHCI channel> at channel 0 on ahci0
ahcich1: <AHCI channel> at channel 1 on ahci0
pci0: <serial bus> at device 25.0 (no driver attached)
sdhci_pci1: <Generic SD HCI> mem 0xa1324000-0xa1324fff at device 26.0 on pci0
sdhci_pci1: 1 slot(s) allocated
mmc0: <MMC/SD bus> on sdhci_pci1
pcib1: <ACPI PCI-PCI bridge> at device 28.0 on pci0
pci1: <ACPI PCI bus> on pcib1
pci1: <network> at device 0.0 (no driver attached)
pcib2: <ACPI PCI-PCI bridge> at device 29.0 on pci0
pci2: <ACPI PCI bus> on pcib2
nvme0: <Generic NVMe Device> mem 0xa1100000-0xa1103fff,0xa1104000-0xa11040ff at device 0.0 on pci2
pci0: <simple comms> at device 30.0 (no driver attached)
pci0: <serial bus> at device 30.3 (no driver attached)
isab0: <PCI-ISA bridge> at device 31.0 on pci0
isa0: <ISA bus> on isab0
hdac0: <Intel Cannon Lake HDA Controller> mem 0xa1318000-0xa131bfff,0xa1000000-0xa10fffff at device 31.3 on pci0
pci0: <serial bus> at device 31.5 (no driver attached)
acpi_button0: <Sleep Button> on acpi0
acpi_button1: <Power Button> on acpi0
acpi_tz0: <Thermal Zone> on acpi0
atkbdc0: <Keyboard controller (i8042)> port 0x60,0x64 irq 1 on acpi0
atkbd0: <AT Keyboard> irq 1 on atkbdc0
kbd0 at atkbd0
atkbd0: [GIANT-LOCKED]
acpi_syscontainer0: <System Container> on acpi0
acpi_acad0: <AC Adapter> on acpi0
battery0: <ACPI Control Method Battery> on acpi0
acpi_lid0: <Control Method Lid Switch> on acpi0
hwpstate_intel0: <Intel Speed Shift> on cpu0
hwpstate_intel1: <Intel Speed Shift> on cpu1
hwpstate_intel2: <Intel Speed Shift> on cpu2
hwpstate_intel3: <Intel Speed Shift> on cpu3
hwpstate_intel4: <Intel Speed Shift> on cpu4
hwpstate_intel5: <Intel Speed Shift> on cpu5
hwpstate_intel6: <Intel Speed Shift> on cpu6
hwpstate_intel7: <Intel Speed Shift> on cpu7
Timecounter "TSC-low" frequency 1151999875 Hz quality 1000
Timecounters tick every 1.000 msec
ugen0.1: <Intel XHCI root HUB> at usbus0
uhub0 on usbus0
uhub0: <Intel XHCI root HUB, class 9/0, rev 3.00/1.00, addr 1> on usbus0
mmc0: No compatible cards found on bus
nvd0: <SanDisk Extreme Pro 1TB> NVMe namespace
nvd0: 953869MB (1953525168 512 byte sectors)
hdacc0: <Realtek ALC897 HDA CODEC> at cad 0 on hdac0
hdaa0: <Realtek ALC897 Audio Function Group> at nid 1 on hdacc0
pcm0: <Realtek ALC897 (Internal Analog)> at nid 20 and 18 on hdaa0
pcm1: <Realtek ALC897 (Front Analog Headphones)> at nid 27 on hdaa0
hdacc1: <Intel Kaby Lake HDA CODEC> at cad 2 on hdac0
hdaa1: <Intel Kaby Lake Audio Function Group> at nid 1 on hdacc1
pcm2: <Intel Kaby Lake (HDMI/DP 8ch)> at nid 3 on hdaa1
Trying to mount root from ufs:/dev/ufs/FreeBSD_Install [ro,noatime]...
WARNING: WITNESS option enabled, expect reduced performance.
uhub0: 18 ports with 18 removable, self powered
Root mount waiting for: usbus0
ugen0.2: <Sonix Technology Co., Ltd. USB 2.0 Camera> at usbus0
ugen0.3: <vendor 0x05e3 USB2.0 Hub> at usbus0
uhub1 on uhub0
uhub1: <vendor 0x05e3 USB2.0 Hub, class 9/0, rev 2.00/32.98, addr 2> on usbus0
Root mount waiting for: usbus0
uhub1: 4 ports with 4 removable, self powered
Root mount waiting for: usbus0
ugen0.4: <ELECOM MF-HMU2> at usbus0
umass0 on uhub1
umass0: <ELECOM MF-HMU2, class 0/0, rev 2.00/1.00, addr 3> on usbus0
umass0: SCSI over Bulk-Only; quirks = 0x8100
umass0:2:0: Attached to scbus2
da0 at umass-sim0 bus 0 scbus2 target 0 lun 0
da0: <ELECOM MF-HMU2 PMAP> Removable Direct Access SCSI device
da0: Serial Number 07BA1B081B630914
da0: 40.000MB/s transfers
da0: 1912MB (3915776 512 byte sectors)
da0: quirks=0x2<NO_6_BYTE>
Root mount waiting for: usbus0
ugen0.5: <Logitech USB Receiver> at usbus0
ugen0.6: <Realtek USB 10/100/1000 LAN> at usbus0
Root mount waiting for: usbus0
ugen0.7: <vendor 0x8087 product 0x0a2a> at usbus0
pchtherm0: <CannonLake-LP Thermal Subsystem> mem 0xa132e000-0xa132efff at device 18.0 on pci0
ig4iic0: <Intel Cannon Lake-LP I2C Controller-2> at device 21.0 on pci0
ig4iic0: Using MSI
iicbus0: <Philips I2C bus (ACPI-hinted)> on ig4iic0
iicbus0: <unknown card> at addr 0x2c
ig4iic1: <Intel Cannon Lake-LP I2C Controller-3> at device 21.1 on pci0
ig4iic1: Using MSI
iicbus1: <Philips I2C bus (ACPI-hinted)> on ig4iic1
ig4iic2: <Intel Cannon Lake-LP I2C Controller-4> at device 21.2 on pci0
ig4iic2: Using MSI
iicbus2: <Philips I2C bus (ACPI-hinted)> on ig4iic2
ugen0.8: <ELECOM MF-HMU2> at usbus0
umass1 on uhub1
umass1: <ELECOM MF-HMU2, class 0/0, rev 2.00/1.00, addr 7> on usbus0
umass1: SCSI over Bulk-Only; quirks = 0x8100
umass1:3:1: Attached to scbus3
da1 at umass-sim1 bus 1 scbus3 target 0 lun 0
da1: <ELECOM MF-HMU2 PMAP> Removable Direct Access SCSI device
da1: Serial Number 07BA1B0820ACB40B
da1: 40.000MB/s transfers
da1: 1912MB (3915776 512 byte sectors)
da1: quirks=0x2<NO_6_BYTE>
ig4iic3: <Intel Cannon Lake-LP I2C Controller-0> at device 25.0 on pci0
ig4iic3: Using MSI
iicbus3: <Philips I2C bus (ACPI-hinted)> on ig4iic3
iwm0: <Intel(R) Dual Band Wireless AC 7265> mem 0xa1200000-0xa1201fff at device 0.0 on pci1
iwm0: hw rev 0x210, fw ver 22.361476.0, address 8c:c6:81:0a:6f:81
acpi_wmi0: <ACPI-WMI mapping> on acpi0
acpi_wmi0: Embedded MOF found
ACPI: \134_SB.WFDE.WQCC: 1 arguments were passed to a non-method ACPI object (Buffer) (20210930/nsarguments-361)
acpi_wmi1: <ACPI-WMI mapping> on acpi0
acpi_wmi1: Embedded MOF found
ACPI: \134_SB.WFTE.WQCC: 1 arguments were passed to a non-method ACPI object (Buffer) (20210930/nsarguments-361)
lo0: link state changed to UP
ums0 on uhub1
ums0: <Logitech USB Receiver, class 0/0, rev 2.00/30.00, addr 4> on usbus0
ums0: 16 buttons and [XYZT] coordinates ID=0
uhid0 on uhub1
uhid0: <Logitech USB Receiver, class 0/0, rev 2.00/30.00, addr 4> on usbus0
ure0 on uhub1
ure0: <Realtek USB 10/100/1000 LAN, class 0/0, rev 2.10/30.00, addr 5> on usbus0
ugen0.7: <vendor 0x8087 product 0x0a2a> at usbus0 (disconnected)
miibus0: <MII bus> on ure0
rgephy0: <RTL8251/8153 1000BASE-T media interface> PHY 0 on miibus0
rgephy0: none, 10baseT, 10baseT-FDX, 100baseTX, 100baseTX-FDX, 1000baseT-FDX, 1000baseT-FDX-master, auto
ue0: <USB Ethernet> on ure0
ue0: Ethernet address: a0:ce:c8:de:9c:95
iichid0: <SYNA3602:00 093A:0255 I2C HID device> at addr 0x2c on iicbus0
iichid0: Interrupt setup failed. Fallback to sampling
hidbus0: <HID bus> on iichid0
ugen0.7: <vendor 0x8087 product 0x0a2a> at usbus0
ue0: link state changed to DOWN
hms0: <SYNA3602:00 093A:0255 Mouse> on hidbus0
hms0: 2 buttons and [XY] coordinates ID=2
hmt0: <SYNA3602:00 093A:0255 TouchPad> on hidbus0
hconf0: <SYNA3602:00 093A:0255 Configuration> on hidbus0
hmt0: Multitouch touchpad with 2 external buttons, click-pad
hmt0: 5 contacts with [C] properties. Report range [0:0] - [1707:1060]
ng_ubt: HCI command 0x0c03 timed out
ng_ubt: HCI command 0x0c03 timed out
- x11/xorg (xorg-7.7_3)
% Xorg -version X.Org X Server 1.20.13 X Protocol Version 11, Revision 0 Build Operating System: FreeBSD 14.0-CURRENT amd64 Current Operating System: FreeBSD kazu.tfc 14.0-CURRENT FreeBSD \ 14.0-CURRENT #0 n253275-f01c863337f7: Mon Feb 21 14:28:11 JST \ 2022 root@tbedfc:/usr/obj/usr/src/amd64.amd64/sys/GENERIC \ amd64 Build Date: 28 February 2022 10:18:57PM Current version of pixman: 0.40.0 Before reporting problems, check http://wiki.x.org to make sure that you have the latest version. % - とりあえずdrm-current-kmodで動く
- graphics/drm-current-kmod (drm-current-kmod-5.4.144.g20220128)
-
/etc/rc.conf
kld_list="/boot/modules/i915kms.ko"
- 2160x1440 (depth 24)
% xwininfo -root xwininfo: Window id: 0x53f (the root window) (has no name) Absolute upper-left X: 0 Absolute upper-left Y: 0 Relative upper-left X: 0 Relative upper-left Y: 0 Width: 2160 Height: 1440 Depth: 24 Visual: 0x21 Visual Class: TrueColor Border width: 0 Class: InputOutput Colormap: 0x20 (installed) Bit Gravity State: ForgetGravity Window Gravity State: NorthWestGravity Backing Store State: NotUseful Save Under State: no Map State: IsViewable Override Redirect State: no Corners: +0+0 -0+0 -0-0 +0-0 -geometry 2160x1440+0+0 %
- フレームバッファが3840x2160なのでScreenで固定しておく
- /usr/local/etc/X11/xorg.conf.d/screen.conf
Section "Screen" Identifier "Screen0" Device "Card0" Monitor "Monitor0" DefaultDepth 24 SubSection "Display" Viewport 0 0 Depth 24 Modes "2160x1440" EndSubSection EndSection
- /usr/local/etc/X11/xorg.conf.d/screen.conf
[ 37.599] X.Org X Server 1.20.13 X Protocol Version 11, Revision 0 [ 37.599] Build Operating System: FreeBSD 14.0-CURRENT amd64 [ 37.599] Current Operating System: FreeBSD kazu.tfc 14.0-CURRENT FreeBSD 14.0-CURRENT #0 n253275-f01c863337f7: Mon Feb 21 14:28:11 JST 2022 root@tbedfc:/usr/obj/usr/src/amd64.amd64/sys/GENERIC amd64 [ 37.599] Build Date: 28 February 2022 10:18:57PM [ 37.599] [ 37.599] Current version of pixman: 0.40.0 [ 37.599] Before reporting problems, check http://wiki.x.org to make sure that you have the latest version. [ 37.599] Markers: (--) probed, (**) from config file, (==) default setting, (++) from command line, (!!) notice, (II) informational, (WW) warning, (EE) error, (NI) not implemented, (??) unknown. [ 37.599] (==) Log file: "/var/log/Xorg.0.log", Time: Wed Jul 20 09:48:06 2022 [ 37.602] (==) Using config directory: "/usr/local/etc/X11/xorg.conf.d" [ 37.602] (==) Using system config directory "/usr/local/share/X11/xorg.conf.d" [ 37.604] (==) No Layout section. Using the first Screen section. [ 37.604] (**) |-->Screen "Screen0" (0) [ 37.604] (**) | |-->Monitor "<default monitor>" [ 37.604] (==) No monitor specified for screen "Screen0". Using a default monitor configuration. [ 37.604] (==) Automatically adding devices [ 37.605] (==) Automatically enabling devices [ 37.605] (==) Not automatically adding GPU devices [ 37.605] (==) Max clients allowed: 256, resource mask: 0x1fffff [ 37.606] (WW) The directory "/usr/local/share/fonts/stix/" does not exist. [ 37.606] Entry deleted from font path. [ 37.607] (WW) `fonts.dir' not found (or not valid) in "/usr/local/share/fonts/std.ja_JP/". [ 37.607] Entry deleted from font path. [ 37.607] (Run 'mkfontdir' on "/usr/local/share/fonts/std.ja_JP/"). [ 37.610] (**) FontPath set to: /usr/local/share/fonts/cyrillic/, /usr/local/share/fonts/bitstream-vera/, /usr/local/share/fonts/misc/, /usr/local/share/fonts/TTF/, /usr/local/share/fonts/OTF/, /usr/local/share/fonts/Type1/, /usr/local/share/fonts/100dpi/, /usr/local/share/fonts/75dpi/, catalogue:/usr/local/etc/X11/fontpath.d [ 37.610] (==) ModulePath set to "/usr/local/lib/xorg/modules" [ 37.610] (II) The server relies on udev to provide the list of input devices. If no devices become available, reconfigure udev or disable AutoAddDevices. [ 37.610] (II) Loader magic: 0x433250 [ 37.610] (II) Module ABI versions: [ 37.610] X.Org ANSI C Emulation: 0.4 [ 37.610] X.Org Video Driver: 24.1 [ 37.610] X.Org XInput driver : 24.1 [ 37.610] X.Org Server Extension : 10.0 [ 37.610] (--) PCI:*(0@0:2:0) 8086:3ea5:0100:2782 rev 1, Mem @ 0xa0000000/16777216, 0x90000000/268435456, I/O @ 0x00003000/64, BIOS @ 0x????????/65536 [ 37.611] (II) LoadModule: "glx" [ 37.611] (II) Loading /usr/local/lib/xorg/modules/extensions/libglx.so [ 37.622] (II) Module glx: vendor="X.Org Foundation" [ 37.622] compiled for 1.20.13, module version = 1.0.0 [ 37.622] ABI class: X.Org Server Extension, version 10.0 [ 37.622] (==) Matched intel as autoconfigured driver 0 [ 37.622] (==) Matched modesetting as autoconfigured driver 1 [ 37.622] (==) Matched scfb as autoconfigured driver 2 [ 37.622] (==) Matched vesa as autoconfigured driver 3 [ 37.622] (==) Assigned the driver to the xf86ConfigLayout [ 37.622] (II) LoadModule: "intel" [ 37.622] (II) Loading /usr/local/lib/xorg/modules/drivers/intel_drv.so [ 37.624] (II) Module intel: vendor="X.Org Foundation" [ 37.624] compiled for 1.20.13, module version = 2.99.917 [ 37.624] Module class: X.Org Video Driver [ 37.624] ABI class: X.Org Video Driver, version 24.1 [ 37.624] (II) LoadModule: "modesetting" [ 37.624] (II) Loading /usr/local/lib/xorg/modules/drivers/modesetting_drv.so [ 37.625] (II) Module modesetting: vendor="X.Org Foundation" [ 37.625] compiled for 1.20.13, module version = 1.20.13 [ 37.625] Module class: X.Org Video Driver [ 37.625] ABI class: X.Org Video Driver, version 24.1 [ 37.626] (II) LoadModule: "scfb" [ 37.626] (II) Loading /usr/local/lib/xorg/modules/drivers/scfb_drv.so [ 37.626] (II) Module scfb: vendor="X.Org Foundation" [ 37.626] compiled for 1.20.13, module version = 0.0.5 [ 37.626] ABI class: X.Org Video Driver, version 24.1 [ 37.626] (II) LoadModule: "vesa" [ 37.626] (II) Loading /usr/local/lib/xorg/modules/drivers/vesa_drv.so [ 37.627] (II) Module vesa: vendor="X.Org Foundation" [ 37.627] compiled for 1.20.13, module version = 2.5.0 [ 37.627] Module class: X.Org Video Driver [ 37.627] ABI class: X.Org Video Driver, version 24.1 [ 37.627] (II) intel: Driver for Intel(R) Integrated Graphics Chipsets: i810, i810-dc100, i810e, i815, i830M, 845G, 854, 852GM/855GM, 865G, 915G, E7221 (i915), 915GM, 945G, 945GM, 945GME, Pineview GM, Pineview G, 965G, G35, 965Q, 946GZ, 965GM, 965GME/GLE, G33, Q35, Q33, GM45, 4 Series, G45/G43, Q45/Q43, G41, B43 [ 37.628] (II) intel: Driver for Intel(R) HD Graphics [ 37.628] (II) intel: Driver for Intel(R) Iris(TM) Graphics [ 37.628] (II) intel: Driver for Intel(R) Iris(TM) Pro Graphics [ 37.628] (II) modesetting: Driver for Modesetting Kernel Drivers: kms [ 37.628] (II) scfb: driver for wsdisplay framebuffer: scfb [ 37.628] (II) VESA: driver for VESA chipsets: vesa [ 37.628] (--) Using syscons driver with X support (version 2.0) [ 37.628] (--) using VT number 9 [ 37.634] (WW) Falling back to old probe method for modesetting [ 37.634] (WW) Falling back to old probe method for scfb [ 37.634] scfb trace: probe start [ 37.634] scfb trace: probe done [ 37.634] (WW) VGA arbiter: cannot open kernel arbiter, no multi-card support [ 37.634] (**) intel(0): Depth 24, (--) framebuffer bpp 32 [ 37.634] (==) intel(0): RGB weight 888 [ 37.634] (==) intel(0): Default visual is TrueColor [ 37.635] (--) intel(0): Integrated Graphics Chipset: Intel(R) HD Graphics [ 37.635] (**) intel(0): Relaxed fencing enabled [ 37.635] (**) intel(0): Wait on SwapBuffers? enabled [ 37.635] (**) intel(0): Triple buffering? enabled [ 37.635] (**) intel(0): Framebuffer tiled [ 37.635] (**) intel(0): Pixmaps tiled [ 37.635] (**) intel(0): 3D buffers tiled [ 37.635] (**) intel(0): SwapBuffers wait enabled [ 37.635] (==) intel(0): video overlay key set to 0x101fe [ 37.637] (II) intel(0): Output eDP-1 has no monitor section [ 37.651] (II) intel(0): Output HDMI-1 has no monitor section [ 37.651] (II) intel(0): Output DP-1 has no monitor section [ 37.665] (II) intel(0): Output HDMI-2 has no monitor section [ 37.666] (II) intel(0): EDID for output eDP-1 [ 37.666] (II) intel(0): Manufacturer: CMN Model: 8c02 Serial#: 0 [ 37.666] (II) intel(0): Year: 2018 Week: 49 [ 37.666] (II) intel(0): EDID Version: 1.4 [ 37.666] (II) intel(0): Digital Display Input [ 37.667] (II) intel(0): 8 bits per channel [ 37.667] (II) intel(0): Digital interface is DisplayPort [ 37.667] (II) intel(0): Max Image Size [cm]: horiz.: 30 vert.: 20 [ 37.667] (II) intel(0): Gamma: 2.20 [ 37.667] (II) intel(0): No DPMS capabilities specified [ 37.667] (II) intel(0): Supported color encodings: RGB 4:4:4 [ 37.667] (II) intel(0): First detailed timing is preferred mode [ 37.667] (II) intel(0): Preferred mode is native pixel format and refresh rate [ 37.667] (II) intel(0): redX: 0.640 redY: 0.330 greenX: 0.300 greenY: 0.600 [ 37.667] (II) intel(0): blueX: 0.150 blueY: 0.060 whiteX: 0.308 whiteY: 0.330 [ 37.667] (II) intel(0): Manufacturer's mask: 0 [ 37.667] (II) intel(0): Supported detailed timing: [ 37.667] (II) intel(0): clock: 218.5 MHz Image Size: 296 x 197 mm [ 37.667] (II) intel(0): h_active: 2160 h_sync: 2208 h_sync_end 2240 h_blank_end 2320 h_border: 0 [ 37.667] (II) intel(0): v_active: 1440 v_sync: 1443 v_sync_end 1453 v_blanking: 1570 v_border: 0 [ 37.667] (II) intel(0): Monitor name: P140ZKA-BZ1 [ 37.667] (II) intel(0): EDID (in hex): [ 37.667] (II) intel(0): 00ffffffffffff000dae028c00000000 [ 37.667] (II) intel(0): 311c0104a51e147802ee9ea3544c9926 [ 37.667] (II) intel(0): 0f4e5400000001010101010101010101 [ 37.667] (II) intel(0): 0101010101015e5570a080a082503020 [ 37.667] (II) intel(0): 3a0028c5100000180000000000000000 [ 37.667] (II) intel(0): 00000000000000000000000000000000 [ 37.667] (II) intel(0): 000000000000000000000000000000fc [ 37.667] (II) intel(0): 00503134305a4b412d425a310a0a00a2 [ 37.668] (II) intel(0): Not using default mode "320x240" (doublescan mode not supported) [ 37.668] (II) intel(0): Not using default mode "400x300" (doublescan mode not supported) [ 37.668] (II) intel(0): Not using default mode "400x300" (doublescan mode not supported) [ 37.668] (II) intel(0): Not using default mode "512x384" (doublescan mode not supported) [ 37.668] (II) intel(0): Not using default mode "640x480" (doublescan mode not supported) [ 37.668] (II) intel(0): Not using default mode "640x512" (doublescan mode not supported) [ 37.668] (II) intel(0): Not using default mode "800x600" (doublescan mode not supported) [ 37.668] (II) intel(0): Not using default mode "896x672" (doublescan mode not supported) [ 37.668] (II) intel(0): Not using default mode "928x696" (doublescan mode not supported) [ 37.668] (II) intel(0): Not using default mode "960x720" (doublescan mode not supported) [ 37.668] (II) intel(0): Not using default mode "700x525" (doublescan mode not supported) [ 37.668] (II) intel(0): Not using default mode "1024x768" (doublescan mode not supported) [ 37.668] (II) intel(0): Not using default mode "320x180" (doublescan mode not supported) [ 37.668] (II) intel(0): Not using default mode "320x180" (doublescan mode not supported) [ 37.668] (II) intel(0): Not using default mode "360x202" (doublescan mode not supported) [ 37.668] (II) intel(0): Not using default mode "360x202" (doublescan mode not supported) [ 37.668] (II) intel(0): Not using default mode "432x243" (doublescan mode not supported) [ 37.668] (II) intel(0): Not using default mode "432x243" (doublescan mode not supported) [ 37.668] (II) intel(0): Not using default mode "480x270" (doublescan mode not supported) [ 37.668] (II) intel(0): Not using default mode "480x270" (doublescan mode not supported) [ 37.668] (II) intel(0): Not using default mode "512x288" (doublescan mode not supported) [ 37.668] (II) intel(0): Not using default mode "512x288" (doublescan mode not supported) [ 37.668] (II) intel(0): Not using default mode "640x360" (doublescan mode not supported) [ 37.668] (II) intel(0): Not using default mode "640x360" (doublescan mode not supported) [ 37.668] (II) intel(0): Not using default mode "684x384" (doublescan mode not supported) [ 37.668] (II) intel(0): Not using default mode "684x384" (doublescan mode not supported) [ 37.668] (II) intel(0): Not using default mode "800x450" (doublescan mode not supported) [ 37.668] (II) intel(0): Not using default mode "800x450" (doublescan mode not supported) [ 37.668] (II) intel(0): Not using default mode "960x540" (doublescan mode not supported) [ 37.668] (II) intel(0): Not using default mode "960x540" (doublescan mode not supported) [ 37.668] (II) intel(0): Not using default mode "1024x576" (doublescan mode not supported) [ 37.668] (II) intel(0): Not using default mode "1024x576" (doublescan mode not supported) [ 37.668] (II) intel(0): Not using default mode "1280x720" (doublescan mode not supported) [ 37.668] (II) intel(0): Not using default mode "1280x720" (doublescan mode not supported) [ 37.668] (II) intel(0): Not using default mode "1440x810" (doublescan mode not supported) [ 37.668] (II) intel(0): Not using default mode "1440x810" (doublescan mode not supported) [ 37.668] (II) intel(0): Not using default mode "1600x900" (doublescan mode not supported) [ 37.668] (II) intel(0): Not using default mode "1600x900" (doublescan mode not supported) [ 37.669] (II) intel(0): Not using default mode "1920x1080" (doublescan mode not supported) [ 37.669] (II) intel(0): Not using default mode "1920x1080" (doublescan mode not supported) [ 37.669] (II) intel(0): Not using default mode "2048x1152" (doublescan mode not supported) [ 37.669] (II) intel(0): Not using default mode "2048x1152" (doublescan mode not supported) [ 37.669] (II) intel(0): Not using default mode "640x400" (doublescan mode not supported) [ 37.669] (II) intel(0): Not using default mode "640x400" (doublescan mode not supported) [ 37.669] (II) intel(0): Not using default mode "700x450" (doublescan mode not supported) [ 37.669] (II) intel(0): Not using default mode "700x450" (doublescan mode not supported) [ 37.669] (II) intel(0): Not using default mode "840x525" (doublescan mode not supported) [ 37.669] (II) intel(0): Not using default mode "840x525" (doublescan mode not supported) [ 37.669] (II) intel(0): Not using default mode "960x600" (doublescan mode not supported) [ 37.669] (II) intel(0): Not using default mode "960x600" (doublescan mode not supported) [ 37.669] (II) intel(0): Not using default mode "1280x800" (doublescan mode not supported) [ 37.669] (II) intel(0): Not using default mode "1280x800" (doublescan mode not supported) [ 37.669] (II) intel(0): Printing probed modes for output eDP-1 [ 37.669] (II) intel(0): Modeline "2160x1440"x60.0 218.54 2160 2208 2240 2320 1440 1443 1453 1570 -hsync -vsync (94.2 kHz UeP) [ 37.669] (II) intel(0): Modeline "1920x1440"x60.0 234.00 1920 2048 2256 2600 1440 1441 1444 1500 -hsync +vsync (90.0 kHz d) [ 37.669] (II) intel(0): Modeline "1856x1392"x60.0 218.30 1856 1952 2176 2528 1392 1393 1396 1439 -hsync +vsync (86.4 kHz d) [ 37.669] (II) intel(0): Modeline "1792x1344"x60.0 204.80 1792 1920 2120 2448 1344 1345 1348 1394 -hsync +vsync (83.7 kHz d) [ 37.669] (II) intel(0): Modeline "2048x1152"x59.9 197.00 2048 2184 2400 2752 1152 1155 1160 1195 -hsync +vsync (71.6 kHz d) [ 37.669] (II) intel(0): Modeline "2048x1152"x59.9 156.75 2048 2096 2128 2208 1152 1155 1160 1185 +hsync -vsync (71.0 kHz d) [ 37.669] (II) intel(0): Modeline "1920x1200"x59.9 193.25 1920 2056 2256 2592 1200 1203 1209 1245 -hsync +vsync (74.6 kHz d) [ 37.669] (II) intel(0): Modeline "1920x1200"x60.0 154.00 1920 1968 2000 2080 1200 1203 1209 1235 +hsync -vsync (74.0 kHz d) [ 37.669] (II) intel(0): Modeline "1920x1080"x60.0 173.00 1920 2048 2248 2576 1080 1083 1088 1120 -hsync +vsync (67.2 kHz d) [ 37.669] (II) intel(0): Modeline "1920x1080"x59.9 138.50 1920 1968 2000 2080 1080 1083 1088 1111 +hsync -vsync (66.6 kHz d) [ 37.669] (II) intel(0): Modeline "1600x1200"x60.0 162.00 1600 1664 1856 2160 1200 1201 1204 1250 +hsync +vsync (75.0 kHz d) [ 37.669] (II) intel(0): Modeline "1680x1050"x60.0 146.25 1680 1784 1960 2240 1050 1053 1059 1089 -hsync +vsync (65.3 kHz d) [ 37.669] (II) intel(0): Modeline "1680x1050"x59.9 119.00 1680 1728 1760 1840 1050 1053 1059 1080 +hsync -vsync (64.7 kHz d) [ 37.669] (II) intel(0): Modeline "1400x1050"x60.0 122.00 1400 1488 1640 1880 1050 1052 1064 1082 +hsync +vsync (64.9 kHz d) [ 37.669] (II) intel(0): Modeline "1600x900"x59.9 118.25 1600 1696 1856 2112 900 903 908 934 -hsync +vsync (56.0 kHz d) [ 37.669] (II) intel(0): Modeline "1600x900"x59.8 97.50 1600 1648 1680 1760 900 903 908 926 +hsync -vsync (55.4 kHz d) [ 37.669] (II) intel(0): Modeline "1280x1024"x60.0 108.00 1280 1328 1440 1688 1024 1025 1028 1066 +hsync +vsync (64.0 kHz d) [ 37.669] (II) intel(0): Modeline "1400x900"x60.0 103.50 1400 1480 1624 1848 900 903 913 934 -hsync +vsync (56.0 kHz d) [ 37.669] (II) intel(0): Modeline "1400x900"x59.9 86.50 1400 1448 1480 1560 900 903 913 926 +hsync -vsync (55.4 kHz d) [ 37.669] (II) intel(0): Modeline "1280x960"x60.0 108.00 1280 1376 1488 1800 960 961 964 1000 +hsync +vsync (60.0 kHz d) [ 37.669] (II) intel(0): Modeline "1368x768"x59.9 85.25 1368 1440 1576 1784 768 771 781 798 -hsync +vsync (47.8 kHz d) [ 37.669] (II) intel(0): Modeline "1368x768"x59.9 72.25 1368 1416 1448 1528 768 771 781 790 +hsync -vsync (47.3 kHz d) [ 37.669] (II) intel(0): Modeline "1280x800"x59.8 83.50 1280 1352 1480 1680 800 803 809 831 -hsync +vsync (49.7 kHz d) [ 37.669] (II) intel(0): Modeline "1280x800"x59.9 71.00 1280 1328 1360 1440 800 803 809 823 +hsync -vsync (49.3 kHz d) [ 37.669] (II) intel(0): Modeline "1280x720"x59.9 74.50 1280 1344 1472 1664 720 723 728 748 -hsync +vsync (44.8 kHz d) [ 37.669] (II) intel(0): Modeline "1280x720"x59.7 63.75 1280 1328 1360 1440 720 723 728 741 +hsync -vsync (44.3 kHz d) [ 37.669] (II) intel(0): Modeline "1024x768"x60.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz d) [ 37.670] (II) intel(0): Modeline "1024x576"x59.9 46.50 1024 1064 1160 1296 576 579 584 599 -hsync +vsync (35.9 kHz d) [ 37.670] (II) intel(0): Modeline "1024x576"x59.8 42.00 1024 1072 1104 1184 576 579 584 593 +hsync -vsync (35.5 kHz d) [ 37.670] (II) intel(0): Modeline "960x540"x59.6 40.75 960 992 1088 1216 540 543 548 562 -hsync +vsync (33.5 kHz d) [ 37.670] (II) intel(0): Modeline "960x540"x59.8 37.25 960 1008 1040 1120 540 543 548 556 +hsync -vsync (33.3 kHz d) [ 37.670] (II) intel(0): Modeline "800x600"x60.3 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz d) [ 37.670] (II) intel(0): Modeline "800x600"x56.2 36.00 800 824 896 1024 600 601 603 625 +hsync +vsync (35.2 kHz d) [ 37.670] (II) intel(0): Modeline "864x486"x59.9 32.50 864 888 968 1072 486 489 494 506 -hsync +vsync (30.3 kHz d) [ 37.670] (II) intel(0): Modeline "864x486"x59.6 30.50 864 912 944 1024 486 489 494 500 +hsync -vsync (29.8 kHz d) [ 37.670] (II) intel(0): Modeline "640x480"x59.9 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz d) [ 37.670] (II) intel(0): Modeline "720x405"x59.5 22.50 720 744 808 896 405 408 413 422 -hsync +vsync (25.1 kHz d) [ 37.670] (II) intel(0): Modeline "720x405"x59.0 21.75 720 768 800 880 405 408 413 419 +hsync -vsync (24.7 kHz d) [ 37.670] (II) intel(0): Modeline "640x360"x59.8 18.00 640 664 720 800 360 363 368 376 -hsync +vsync (22.5 kHz d) [ 37.670] (II) intel(0): Modeline "640x360"x59.3 17.75 640 688 720 800 360 363 368 374 +hsync -vsync (22.2 kHz d) [ 37.684] (II) intel(0): EDID for output HDMI-1 [ 37.684] (II) intel(0): EDID for output DP-1 [ 37.697] (II) intel(0): EDID for output HDMI-2 [ 37.697] (II) intel(0): Output eDP-1 connected [ 37.697] (II) intel(0): Output HDMI-1 disconnected [ 37.697] (II) intel(0): Output DP-1 disconnected [ 37.697] (II) intel(0): Output HDMI-2 disconnected [ 37.697] (II) intel(0): Using user preference for initial modes [ 37.697] (II) intel(0): Output eDP-1 using initial mode 2160x1440 +0+0 [ 37.697] (II) intel(0): Kernel page flipping support detected, enabling [ 37.697] (==) intel(0): Using gamma correction (1.0, 1.0, 1.0) [ 37.697] (==) intel(0): DPI set to (96, 96) [ 37.697] (II) Loading sub module "fb" [ 37.697] (II) LoadModule: "fb" [ 37.697] (II) Loading /usr/local/lib/xorg/modules/libfb.so [ 37.699] (II) Module fb: vendor="X.Org Foundation" [ 37.699] compiled for 1.20.13, module version = 1.0.0 [ 37.699] ABI class: X.Org ANSI C Emulation, version 0.4 [ 37.699] (II) Loading sub module "dri2" [ 37.699] (II) LoadModule: "dri2" [ 37.699] (II) Module "dri2" already built-in [ 37.699] (II) UnloadModule: "modesetting" [ 37.699] (II) Unloading modesetting [ 37.699] (II) UnloadModule: "scfb" [ 37.699] (II) Unloading scfb [ 37.699] (II) UnloadModule: "vesa" [ 37.699] (II) Unloading vesa [ 37.699] (II) intel(0): Allocated new frame buffer 2160x1440 stride 8704, tiled [ 37.701] (II) UXA(0): Driver registered support for the following operations: [ 37.701] (II) solid [ 37.701] (II) copy [ 37.701] (II) put_image [ 37.701] (II) get_image [ 37.702] (II) intel(0): [DRI2] Setup complete [ 37.702] (II) intel(0): [DRI2] DRI driver: iris [ 37.702] (II) intel(0): [DRI2] VDPAU driver: va_gl [ 37.702] (==) intel(0): Backing store enabled [ 37.702] (==) intel(0): Silken mouse enabled [ 37.703] (II) intel(0): Initializing HW Cursor [ 37.705] (==) intel(0): DPMS enabled [ 37.705] (==) intel(0): Intel XvMC decoder enabled [ 37.705] (WW) intel(0): Disabling Xv because no adaptors could be initialized. [ 37.705] (II) intel(0): DRI2: Enabled [ 37.705] (II) intel(0): DRI3: Disabled [ 37.705] (==) intel(0): hotplug detection: "enabled" [ 37.731] (II) Initializing extension Generic Event Extension [ 37.733] (II) Initializing extension SHAPE [ 37.734] (II) Initializing extension MIT-SHM [ 37.735] (II) Initializing extension XInputExtension [ 37.737] (II) Initializing extension XTEST [ 37.738] (II) Initializing extension BIG-REQUESTS [ 37.740] (II) Initializing extension SYNC [ 37.741] (II) Initializing extension XKEYBOARD [ 37.742] (II) Initializing extension XC-MISC [ 37.743] (II) Initializing extension SECURITY [ 37.745] (II) Initializing extension XFIXES [ 37.746] (II) Initializing extension RENDER [ 37.747] (II) Initializing extension RANDR [ 37.749] (II) Initializing extension COMPOSITE [ 37.751] (II) Initializing extension DAMAGE [ 37.752] (II) Initializing extension MIT-SCREEN-SAVER [ 37.753] (II) Initializing extension DOUBLE-BUFFER [ 37.754] (II) Initializing extension RECORD [ 37.756] (II) Initializing extension DPMS [ 37.757] (II) Initializing extension Present [ 37.758] (II) Initializing extension DRI3 [ 37.758] (II) Initializing extension X-Resource [ 37.759] (II) Initializing extension XVideo [ 37.761] (II) Initializing extension XVideo-MotionCompensation [ 37.761] (II) Initializing extension GLX [ 38.071] (EE) AIGLX error: Calling driver entry point failed [ 38.145] (II) IGLX: Loaded and initialized swrast [ 38.145] (II) GLX: Initialized DRISWRAST GL provider for screen 0 [ 38.145] (II) Initializing extension XFree86-VidModeExtension [ 38.145] (II) Initializing extension XFree86-DGA [ 38.145] (II) Initializing extension XFree86-DRI [ 38.145] (II) Initializing extension DRI2 [ 38.146] (II) intel(0): Setting screen physical size to 571 x 381 [ 38.225] (II) config/udev: Adding input device System mouse (/dev/input/event0) [ 38.225] (**) System mouse: Applying InputClass "libinput pointer catchall" [ 38.225] (II) LoadModule: "libinput" [ 38.225] (II) Loading /usr/local/lib/xorg/modules/input/libinput_drv.so [ 38.240] (II) Module libinput: vendor="X.Org Foundation" [ 38.240] compiled for 1.20.13, module version = 0.30.0 [ 38.240] Module class: X.Org XInput Driver [ 38.240] ABI class: X.Org XInput driver, version 24.1 [ 38.240] (II) Using input driver 'libinput' for 'System mouse' [ 38.240] (**) System mouse: always reports core events [ 38.240] (**) Option "Device" "/dev/input/event0" [ 38.241] (**) Option "_source" "server/udev" [ 38.250] (II) event0 - System mouse: is tagged by udev as: Mouse [ 38.251] (II) event0 - System mouse: device is a pointer [ 38.253] (II) event0 - System mouse: device removed [ 38.253] (**) Option "config_info" "udev:/dev/input/event0" [ 38.253] (II) XINPUT: Adding extended input device "System mouse" (type: MOUSE, id 6) [ 38.253] (**) Option "AccelerationScheme" "none" [ 38.253] (**) System mouse: (accel) selected scheme none/0 [ 38.253] (**) System mouse: (accel) acceleration factor: 2.000 [ 38.253] (**) System mouse: (accel) acceleration threshold: 4 [ 38.256] (II) event0 - System mouse: is tagged by udev as: Mouse [ 38.257] (II) event0 - System mouse: device is a pointer [ 38.259] (II) config/udev: Adding input device System keyboard multiplexer (/dev/input/event1) [ 38.259] (**) System keyboard multiplexer: Applying InputClass "Evdev keyboard" [ 38.259] (**) System keyboard multiplexer: Applying InputClass "libinput keyboard catchall" [ 38.259] (**) System keyboard multiplexer: Applying InputClass "libinput keyboard catchall" [ 38.259] (II) Using input driver 'libinput' for 'System keyboard multiplexer' [ 38.259] (**) System keyboard multiplexer: always reports core events [ 38.259] (**) Option "Device" "/dev/input/event1" [ 38.259] (**) Option "_source" "server/udev" [ 38.262] (II) event1 - System keyboard multiplexer: is tagged by udev as: Keyboard [ 38.263] (II) event1 - System keyboard multiplexer: device is a keyboard [ 38.265] (II) event1 - System keyboard multiplexer: device removed [ 38.265] (**) Option "config_info" "udev:/dev/input/event1" [ 38.265] (II) XINPUT: Adding extended input device "System keyboard multiplexer" (type: KEYBOARD, id 7) [ 38.265] (**) Option "xkb_rules" "evdev" [ 38.314] (II) event1 - System keyboard multiplexer: is tagged by udev as: Keyboard [ 38.314] (II) event1 - System keyboard multiplexer: device is a keyboard [ 38.316] (II) config/udev: Adding input device Sleep Button (/dev/input/event2) [ 38.316] (**) Sleep Button: Applying InputClass "Evdev keyboard" [ 38.316] (**) Sleep Button: Applying InputClass "libinput keyboard catchall" [ 38.316] (**) Sleep Button: Applying InputClass "libinput keyboard catchall" [ 38.316] (II) Using input driver 'libinput' for 'Sleep Button' [ 38.316] (**) Sleep Button: always reports core events [ 38.316] (**) Option "Device" "/dev/input/event2" [ 38.316] (**) Option "_source" "server/udev" [ 38.318] (II) event2 - Sleep Button: is tagged by udev as: Keyboard [ 38.318] (II) event2 - Sleep Button: device is a keyboard [ 38.319] (II) event2 - Sleep Button: device removed [ 38.319] (**) Option "config_info" "udev:/dev/input/event2" [ 38.320] (II) XINPUT: Adding extended input device "Sleep Button" (type: KEYBOARD, id 8) [ 38.320] (**) Option "xkb_rules" "evdev" [ 38.321] (II) event2 - Sleep Button: is tagged by udev as: Keyboard [ 38.322] (II) event2 - Sleep Button: device is a keyboard [ 38.323] (II) config/udev: Adding input device Power Button (/dev/input/event3) [ 38.323] (**) Power Button: Applying InputClass "Evdev keyboard" [ 38.323] (**) Power Button: Applying InputClass "libinput keyboard catchall" [ 38.323] (**) Power Button: Applying InputClass "libinput keyboard catchall" [ 38.323] (II) Using input driver 'libinput' for 'Power Button' [ 38.323] (**) Power Button: always reports core events [ 38.323] (**) Option "Device" "/dev/input/event3" [ 38.323] (**) Option "_source" "server/udev" [ 38.325] (II) event3 - Power Button: is tagged by udev as: Keyboard [ 38.325] (II) event3 - Power Button: device is a keyboard [ 38.326] (II) event3 - Power Button: device removed [ 38.326] (**) Option "config_info" "udev:/dev/input/event3" [ 38.327] (II) XINPUT: Adding extended input device "Power Button" (type: KEYBOARD, id 9) [ 38.327] (**) Option "xkb_rules" "evdev" [ 38.328] (II) event3 - Power Button: is tagged by udev as: Keyboard [ 38.329] (II) event3 - Power Button: device is a keyboard [ 38.330] (II) config/udev: Adding input device AT keyboard (/dev/input/event4) [ 38.330] (**) AT keyboard: Applying InputClass "Evdev keyboard" [ 38.330] (**) AT keyboard: Applying InputClass "libinput keyboard catchall" [ 38.330] (**) AT keyboard: Applying InputClass "libinput keyboard catchall" [ 38.330] (II) Using input driver 'libinput' for 'AT keyboard' [ 38.330] (**) AT keyboard: always reports core events [ 38.330] (**) Option "Device" "/dev/input/event4" [ 38.330] (**) Option "_source" "server/udev" [ 38.332] (II) event4 - AT keyboard: is tagged by udev as: Keyboard [ 38.332] (II) event4 - AT keyboard: device is a keyboard [ 38.336] (II) event4 - AT keyboard: device removed [ 38.336] (**) Option "config_info" "udev:/dev/input/event4" [ 38.336] (II) XINPUT: Adding extended input device "AT keyboard" (type: KEYBOARD, id 10) [ 38.336] (**) Option "xkb_rules" "evdev" [ 38.338] (II) event4 - AT keyboard: is tagged by udev as: Keyboard [ 38.338] (II) event4 - AT keyboard: device is a keyboard [ 38.342] (II) config/udev: Adding input device Control Method Lid Switch (/dev/input/event5) [ 38.342] (II) No input driver specified, ignoring this device. [ 38.342] (II) This device may have been added with another device file. [ 38.342] (II) config/udev: Adding input device Logitech USB Receiver (/dev/input/event6) [ 38.342] (**) Logitech USB Receiver: Applying InputClass "libinput pointer catchall" [ 38.342] (II) Using input driver 'libinput' for 'Logitech USB Receiver' [ 38.342] (**) Logitech USB Receiver: always reports core events [ 38.342] (**) Option "Device" "/dev/input/event6" [ 38.342] (**) Option "_source" "server/udev" [ 38.343] (II) event6 - Logitech USB Receiver, class 0/0, rev 2.00/30.00, addr 3: is tagged by udev as: Mouse [ 38.344] (II) event6 - Logitech USB Receiver, class 0/0, rev 2.00/30.00, addr 3: device is a pointer [ 38.346] (II) event6 - Logitech USB Receiver, class 0/0, rev 2.00/30.00, addr 3: device removed [ 38.346] (**) Option "config_info" "udev:/dev/input/event6" [ 38.346] (II) XINPUT: Adding extended input device "Logitech USB Receiver" (type: MOUSE, id 11) [ 38.346] (**) Option "AccelerationScheme" "none" [ 38.346] (**) Logitech USB Receiver: (accel) selected scheme none/0 [ 38.346] (**) Logitech USB Receiver: (accel) acceleration factor: 2.000 [ 38.346] (**) Logitech USB Receiver: (accel) acceleration threshold: 4 [ 38.347] (II) event6 - Logitech USB Receiver, class 0/0, rev 2.00/30.00, addr 3: is tagged by udev as: Mouse [ 38.348] (II) event6 - Logitech USB Receiver, class 0/0, rev 2.00/30.00, addr 3: device is a pointer [ 38.349] (II) config/udev: Adding input device SYNA3602:00 093A:0255 Mouse (/dev/input/event7) [ 38.349] (**) SYNA3602:00 093A:0255 Mouse: Applying InputClass "libinput pointer catchall" [ 38.349] (II) Using input driver 'libinput' for 'SYNA3602:00 093A:0255 Mouse' [ 38.349] (**) SYNA3602:00 093A:0255 Mouse: always reports core events [ 38.349] (**) Option "Device" "/dev/input/event7" [ 38.349] (**) Option "_source" "server/udev" [ 38.351] (II) event7 - SYNA3602:00 093A:0255 Mouse: is tagged by udev as: Mouse [ 38.352] (II) event7 - SYNA3602:00 093A:0255 Mouse: device is a pointer [ 38.353] (II) event7 - SYNA3602:00 093A:0255 Mouse: device removed [ 38.354] (**) Option "config_info" "udev:/dev/input/event7" [ 38.354] (II) XINPUT: Adding extended input device "SYNA3602:00 093A:0255 Mouse" (type: MOUSE, id 12) [ 38.354] (**) Option "AccelerationScheme" "none" [ 38.354] (**) SYNA3602:00 093A:0255 Mouse: (accel) selected scheme none/0 [ 38.354] (**) SYNA3602:00 093A:0255 Mouse: (accel) acceleration factor: 2.000 [ 38.354] (**) SYNA3602:00 093A:0255 Mouse: (accel) acceleration threshold: 4 [ 38.356] (II) event7 - SYNA3602:00 093A:0255 Mouse: is tagged by udev as: Mouse [ 38.356] (II) event7 - SYNA3602:00 093A:0255 Mouse: device is a pointer [ 38.358] (II) config/udev: Adding input device SYNA3602:00 093A:0255 TouchPad (/dev/input/event8) [ 38.358] (**) SYNA3602:00 093A:0255 TouchPad: Applying InputClass "libinput pointer catchall" [ 38.358] (**) SYNA3602:00 093A:0255 TouchPad: Applying InputClass "libinput touchpad catchall" [ 38.358] (II) Using input driver 'libinput' for 'SYNA3602:00 093A:0255 TouchPad' [ 38.358] (**) SYNA3602:00 093A:0255 TouchPad: always reports core events [ 38.358] (**) Option "Device" "/dev/input/event8" [ 38.358] (**) Option "_source" "server/udev" [ 38.359] (II) event8 - SYNA3602:00 093A:0255 TouchPad: is tagged by udev as: Mouse Touchpad [ 38.361] (EE) event8 - SYNA3602:00 093A:0255 TouchPad: kernel bug: clickpad with right button, assuming it is not a clickpad [ 38.365] (II) event8 - SYNA3602:00 093A:0255 TouchPad: device is a touchpad [ 38.365] (II) event8 - SYNA3602:00 093A:0255 TouchPad: device removed [ 38.366] (**) Option "config_info" "udev:/dev/input/event8" [ 38.366] (II) XINPUT: Adding extended input device "SYNA3602:00 093A:0255 TouchPad" (type: TOUCHPAD, id 13) [ 38.369] (**) Option "AccelerationScheme" "none" [ 38.369] (**) SYNA3602:00 093A:0255 TouchPad: (accel) selected scheme none/0 [ 38.369] (**) SYNA3602:00 093A:0255 TouchPad: (accel) acceleration factor: 2.000 [ 38.369] (**) SYNA3602:00 093A:0255 TouchPad: (accel) acceleration threshold: 4 [ 38.370] (II) event8 - SYNA3602:00 093A:0255 TouchPad: is tagged by udev as: Mouse Touchpad [ 38.372] (EE) event8 - SYNA3602:00 093A:0255 TouchPad: kernel bug: clickpad with right button, assuming it is not a clickpad [ 38.375] (II) event8 - SYNA3602:00 093A:0255 TouchPad: device is a touchpad
